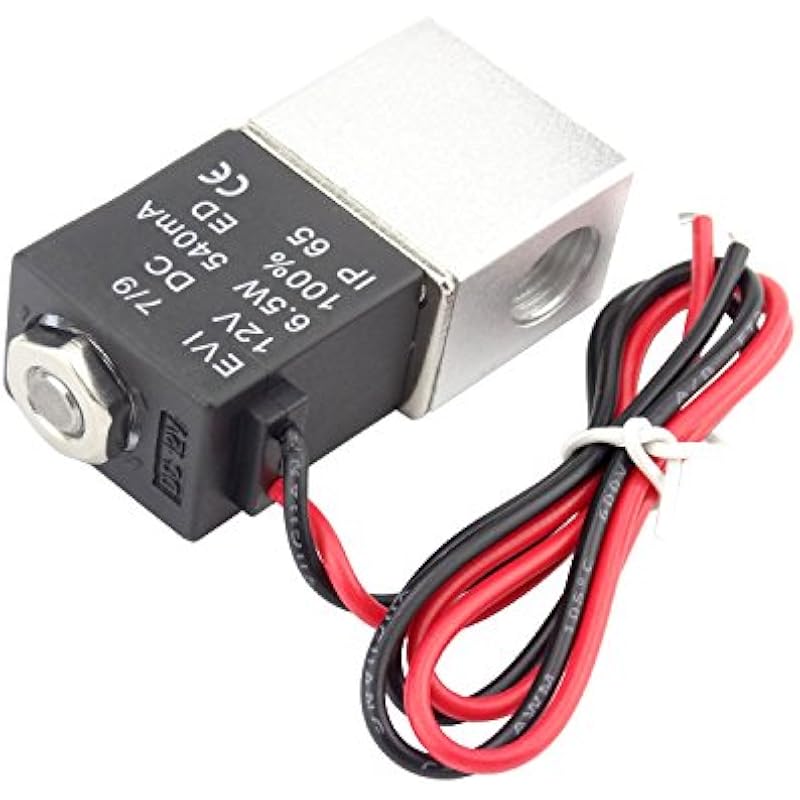

1/4inch DC 12V 2 Way Normally Closed Electric Solenoid Air Valve, Stainless Steel

Material Aluminum
Brand Plum Garden
Exterior Finish Aluminum,Stainless Steel
Inlet Connection Size 0.25 Inches
Inlet Connection Type National Pipe Tapered
Outlet Connection Type National Pipe Tapered
Maximum Operating Pressure 7 Bars
Number of Ports 2
Outlet Connection Size 6.35 Millimeters
Specification Met UL

.WIC Valve is compatible with SMC valves. Has two holes in the bottom and can be mounted in any position.
.2ACK Series valve is a Zero differential solenoid valve which can be operated at 0 PSI (Vacuum).
.Comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constant energized.
.This solenoid valve has one G1/4 inch DN8 inlet and one G1/4 inch DN8 outlet port. Valve stays close when the coil is de-energized- and it opens when energized.
.1/4inch DC 12V 2 Way Normally Closed Pneumatic Aluminum Electric Solenoid Air Valve WIC Valve 2ACK series 2-way normally closed solenoid valve is to control On/Off of air and inert gas.
