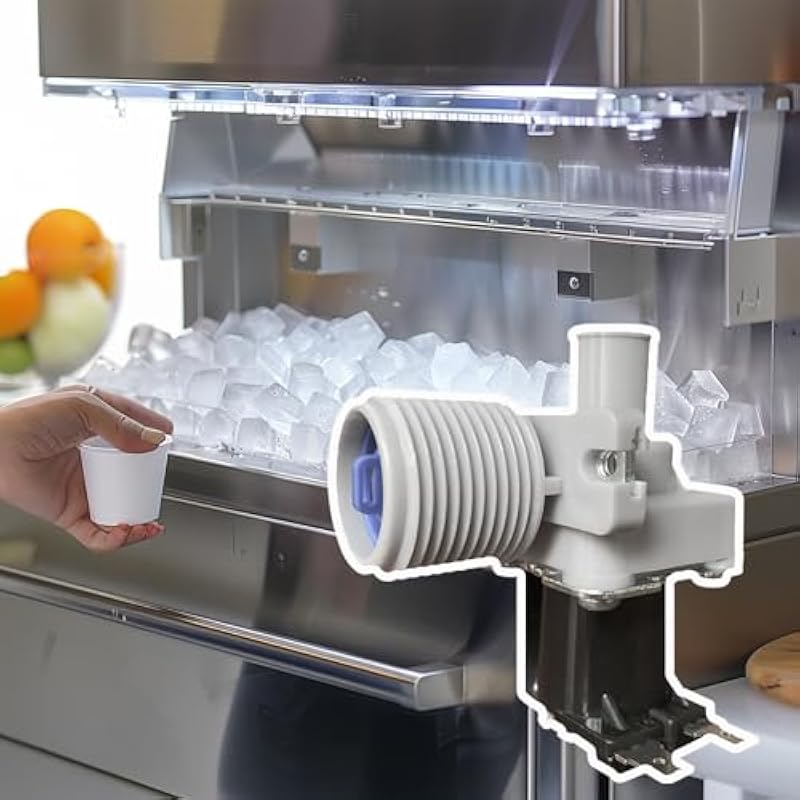

J248-033 Water Solenoid Valve Replacement For Hoshizaki 3U0111-01 Water Valve KM-1200 Series/KM-1300 Series/KM-1600 Series Ice Maker

Material Metal, Plastic
Brand Sparkfix
Exterior Finish Stainless Steel
Inlet Connection Size 0.38 Inches
Inlet Connection Type Barb
Outlet Connection Type Barb
Number of Ports 2
Outlet Connection Size 0.63 Inches
Valve Type solenoid valve
Manufacturer Sparkfix

Faulty Water Inlet Valve – As the component that delivers water to the ice maker tray, your refrigerator’s water inlet valve can experience mechanical and electrical problems. The buildup of mineral deposits can cause mechanical failure, preventing the valve from opening. If the valve becomes clogged with mineral deposits, it will need to be replaced with a new one; it is not recommended to attempt to disassemble the inlet valve for cleaning as this may further damage the parts.
P/N:3U0111-01/3U011101/J248-030/HOS3U0111-01/58-1135,Garden Hose Inlet Connection (with screen insert).Outlet measures 5/8 O.D., 3/8 I.D. Solenoid Coil Rated 120V, 60Hz./3.96 GPM
Compatible with the following ice machine water solenoid valves: 900-SD, CF1A-FS, CR1A-FS;KM-901MAJ;KM-1200 Series ( KM-1200MAE, KM-1200MRE, KM-1200SAE, KM-1200SRE,KM-1201.
Compatible with the following ice machine water solenoid valves: KM-1300 Series ( KM-1300MAF, KM-1300MAH, KM-1300MAH3, KM-1300MRF, KM-1300MRF3, KM-1300MRH, KM-1300MRH3, KM-1300MWF, KM-1300MWH, KM-1300NRF, KM-1300SAF, KM-1300SAF3, KM-1300SAH, KM-1300SAH3, KM-1300SRF, KM-1300SRF3, KM-1300SRH, KM-1300SRH3, KM-1300SWF, KM-1300SWF3, KM-1300SWH, KM-1300SWH3 )
Compatible with the following ice machine water solenoid valves: KM-1600 Series ( KM-1600MRE, KM-1600MRE3, KM-1600MRF, KM-1600MRF3, KM-1600MRH, KM-1600MRH3, KM-1600SAE, KM-1600SAF, KM-1600SAF3, KM-1600SRE, KM-1600SRE3, KM-1600SRF, KM-1600SRF3, KM-1600SWE, KM-1600SWE3, KM-1600SWF, KM-1600SWF3, KM-1601SRH )
