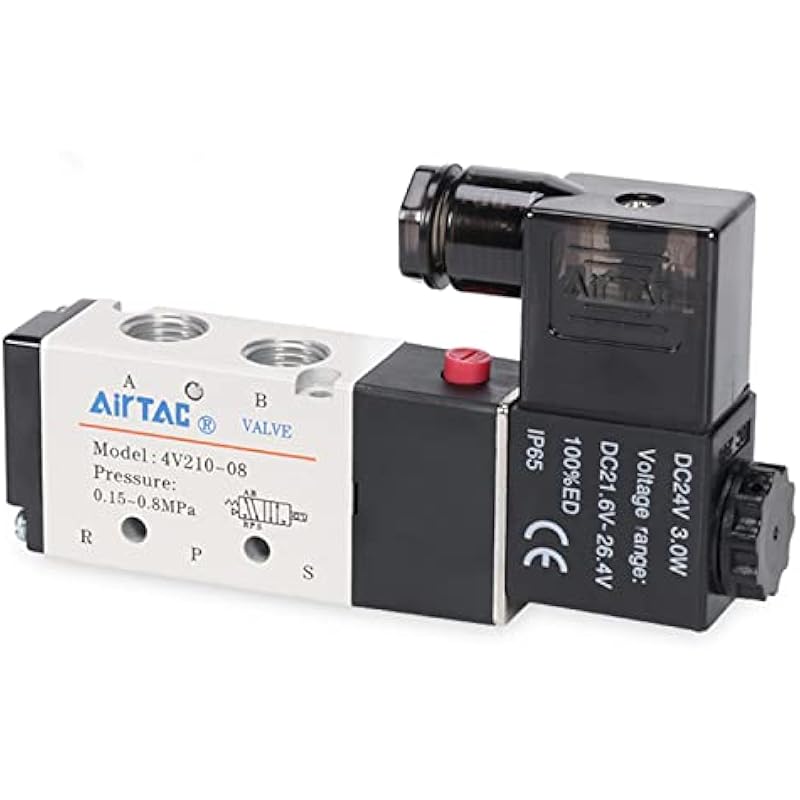

Solenoid Valve 1/4PT Pneumatic AirTAC 4V210-08 Air 12V/24V/110V/220V Single Coil Pilot-Operated Electric 2 Position 5 Way Connection Type (4V210 PT1/4, DC24V) 4V210 PT1/4 DC24V

Material Aluminium alloy
Brand AirTACDINGJU
Item dimensions L x W x H 4.6 x 2.6 x 0.86 inches
Exterior Finish Aluminum
Inlet Connection Size 1/4 Inches
Inlet Connection Type PT thread
Outlet Connection Type PT thread
Maximum Operating Pressure 114 Pound per Square Inch
Number of Ports 5
Outlet Connection Size 1/4 Inches

Model：4v210-08 Product Size:4.6 x 0.8 x 2.7 inches Weight :0.78 Lb
Fluid ： Air Port size：PT 1/4 Vent Silencer：PT1/8
Voltage：DC24V Working Pressure:21~114Psi(0.15-0.8MPa)
Maximum action frequency: 5 times per second
Working temperature: -20-70℃ Material: Aluminum Alloy
